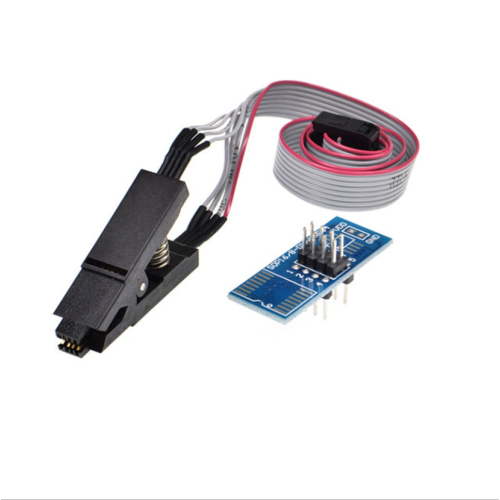

SOP8 Test Clip +Wire + Board Flash Chip IC Socket Adapter Programmer 8-pin Testing Clamp Electronic Circuits Burn chip holder

Product Code: SOP8
(රු)LKR3,500
In Stock (10)

  • This item for sop8 chip ,such as 25**, 24c** , 93c** and so on .
  • Can be used for on-line in-circuit sop8-DIP8 adapter, it is used for a sop8 chip programming that was welded on the circuit, and 'capable of on-line the sop8 chip, not needtake the circuit chip programming of f , so that it can save time people.

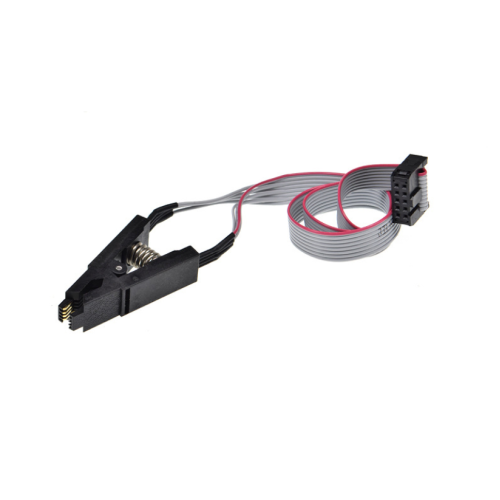

  • The total length of the clip is about 42CM. The clip chip should make the chuck open as much as possible. The red edge corresponds to the 1 pin of the clip chip, and the mark on the blue board is inserted into the programmer 1 pin.
  • When encountering a programmer with a protected function, the clip can not be read under normal voltage. At this time, a voltage of 3.3V needs to be added. The method is as follows:
  • The clip clamps the chip, and the chip pin 8 corresponds to The pin is added with a voltage of 3.3V. Generally, the 3.3V power supply has two wires, the VCC corresponds to the clip, and the other wire is directly grounded.


We will deliver this item within 24-48hrs
