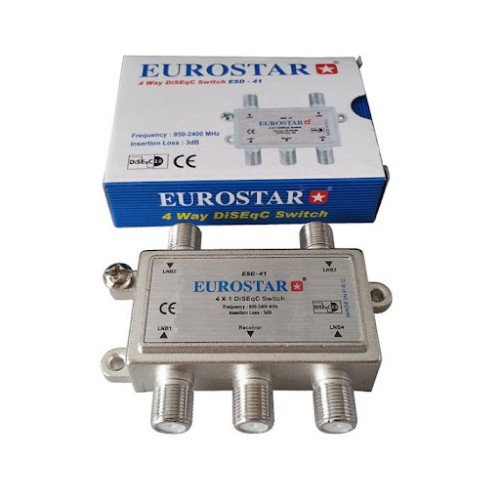

DiSEqC Switch Eurostar 4x1 DiSEqC Satellite Switch Receiver Decoder Connect 4 Dish Antennas

Eurostar DiSEqC Switch is 4-way Wideband DiSEqC Switch

Description:

This DiSEqC Switch is 4-way Wideband DiSEqC Switch that allows for simultaneous connections for up to 4 satellites to be hooked up and linked into one receiver. This DiSEqC switch is compatible with all Free To Air FTA Receivers.

Specification:

• Number of Inputs: 4
• Number of Outputs: 1
• MPN: 4 x 1
• Switching Signal: DiSEqC 1.0.2.0
• Connectors: "F" type female
• Frequency Range: 950-2400MHz
• Insertion Loss: 3(dB)
• Isolation: 20(dB)
• Return Loss: 8(dB)
• Normal Working Voltage: 12-20(V)
• DC Power Consumption:10(mA)
• DC Max Power Passing:500(mA)
• Impedance(all ports):75(Ω)
• Color: Silver

Package Content:1 x Eurostar Wideband 4x1 Satellite Switch
